RTB Display Ads in Email Newsletters: 2026 Benchmarks

What Happens When Anna Opens the Email

Imagine a subscriber named Anna. She receives a morning newsletter from a publisher she trusts. The email has editorial content, a few links, and one display ad slot.

That ad slot is not a JavaScript tag like the ones on a website. Inside the email HTML it usually looks more like a link wrapped around an image:

The <img> tag is the key. When Anna opens the email, her email client loads the image, and that image request travels to the ad server. In that moment, the ad server can evaluate a long list of signals: publisher ID, newsletter ID, placement ID, campaign eligibility, a hashed email or subscriber token, content category, region, device hints, time of open, and the frequency, suppression, and creative rules that apply.

Why This Is Not Normal Web RTB

On a website, the browser can run JavaScript. That unlocks GPT tags, Prebid.js, header bidding, cookie reads, client-side auctions, real-time script logic, viewability scripts, and complex rich media. Inside email, most of that simply does not work. The inbox is not a normal browser , email clients block or limit JavaScript, forms, cookies, scripts, and many interactive behaviors.

So email RTB is not "classic browser RTB." It is closer to a clean, linear flow:

That can still be programmatic. It can still use demand rules, private deals, campaign priority, and DMP segments , it just has to respect the technical reality of email. This is why platforms such as LiveIntent built newsletter ad serving around lightweight HTML tags (their "LiveTags") that are added once to a newsletter template. For the bidding side of the same decision in a full web stack, see DSP + DMP + External Data strategies.

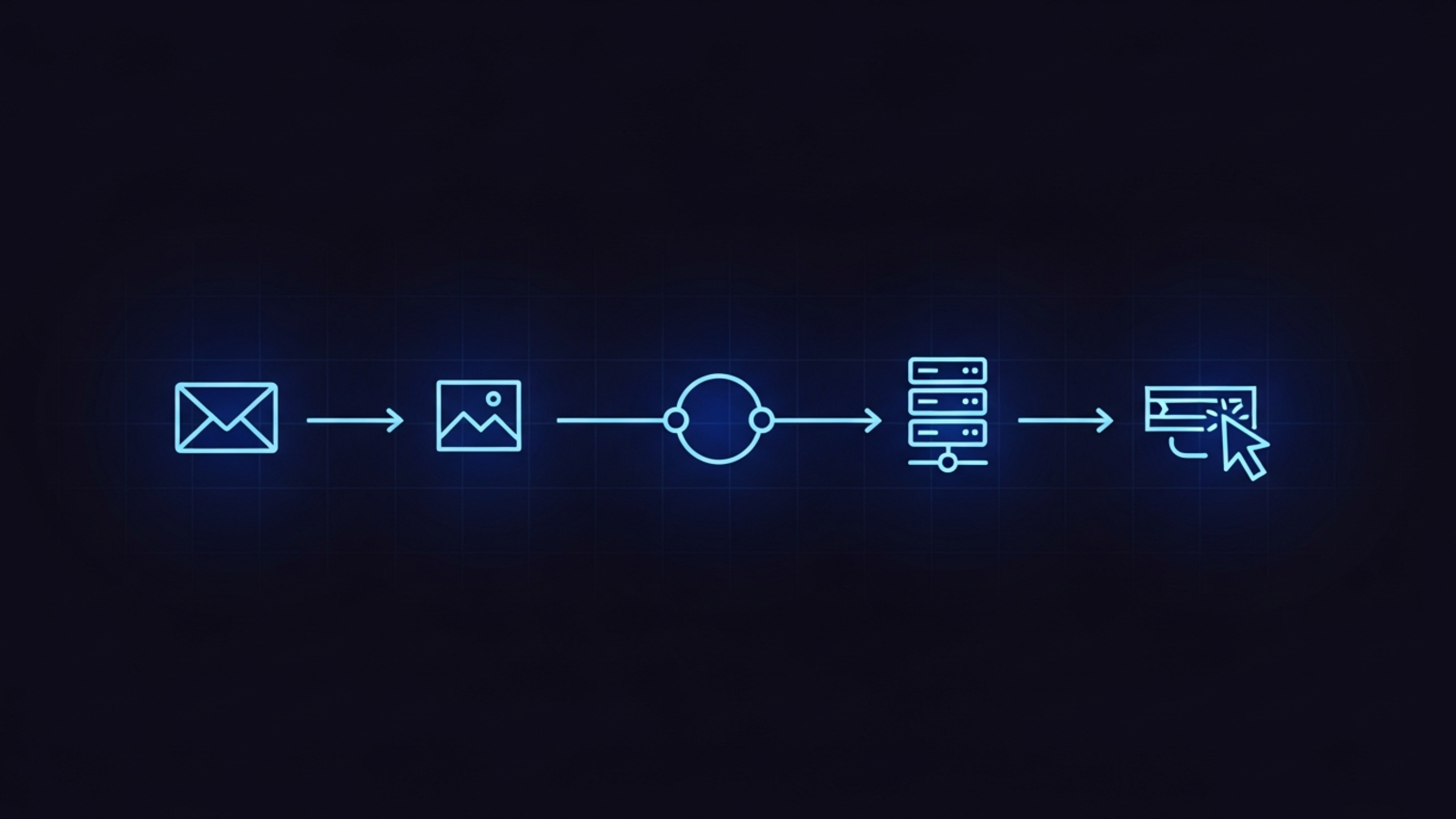

The Render: How the Banner Appears

The render process is simple on the surface and sophisticated behind the scenes. It runs in five short steps.

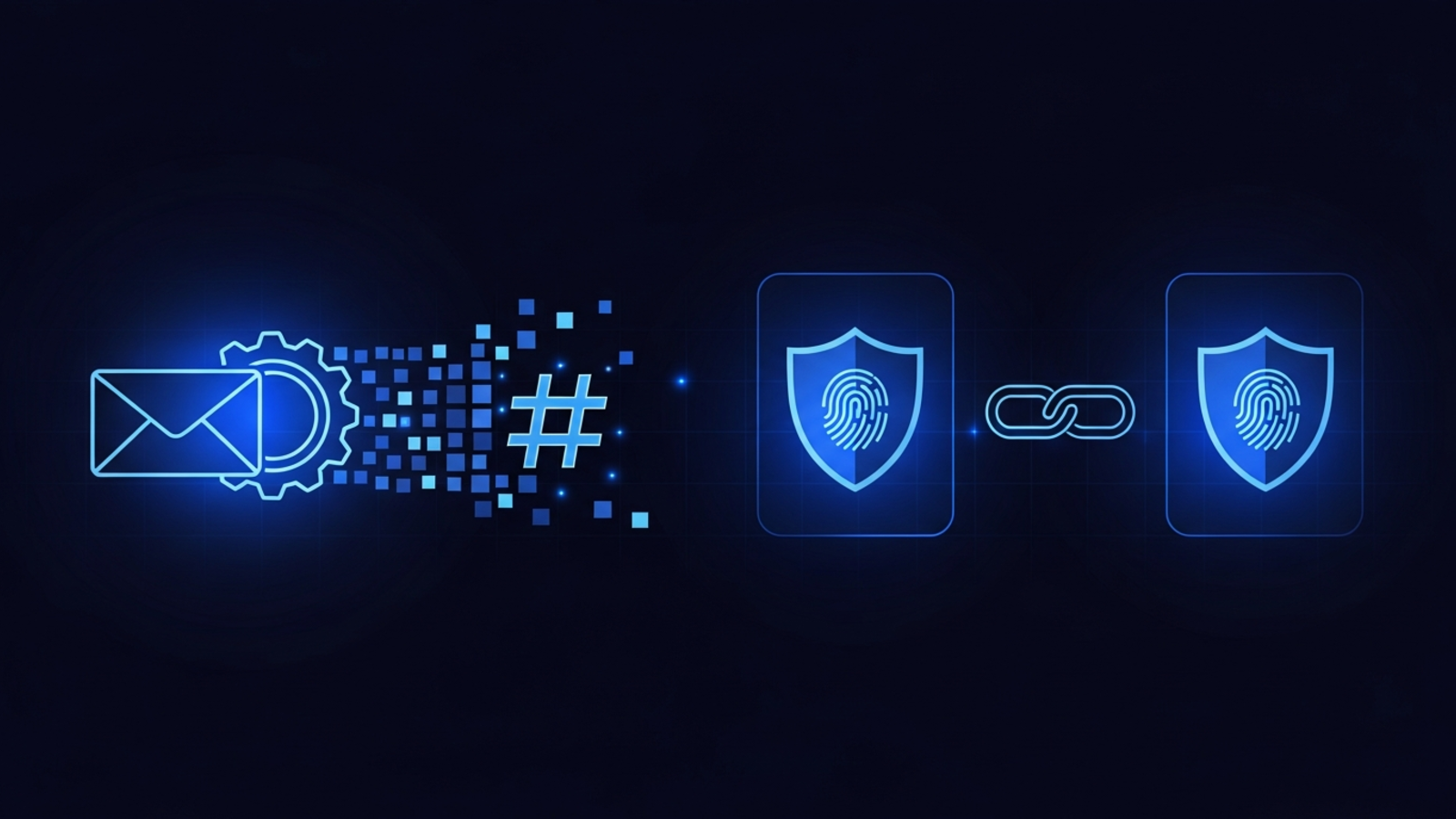

Where Hashed Email Becomes Powerful

Email has one strategic advantage over many web environments: the publisher often knows the subscriber's email address. That does not mean the raw email should ever be exposed. Instead, systems use a hashed email , the address run through a hashing function so it becomes a fixed character string.

Personalization That Is Useful, Not Creepy

Good personalization in newsletter display does not mean announcing, "Hi Anna, we know exactly what you did." That is too aggressive , and it erodes the trust that made the inbox valuable in the first place. The better approach is broad, respectful relevance.

Combine those and the ad server stops being a simple image renderer and becomes a decision layer. This is the same logic that powers modern banner personalization on the open web , see Dynamic Creative Optimization strategies for how those creative decisions are built.

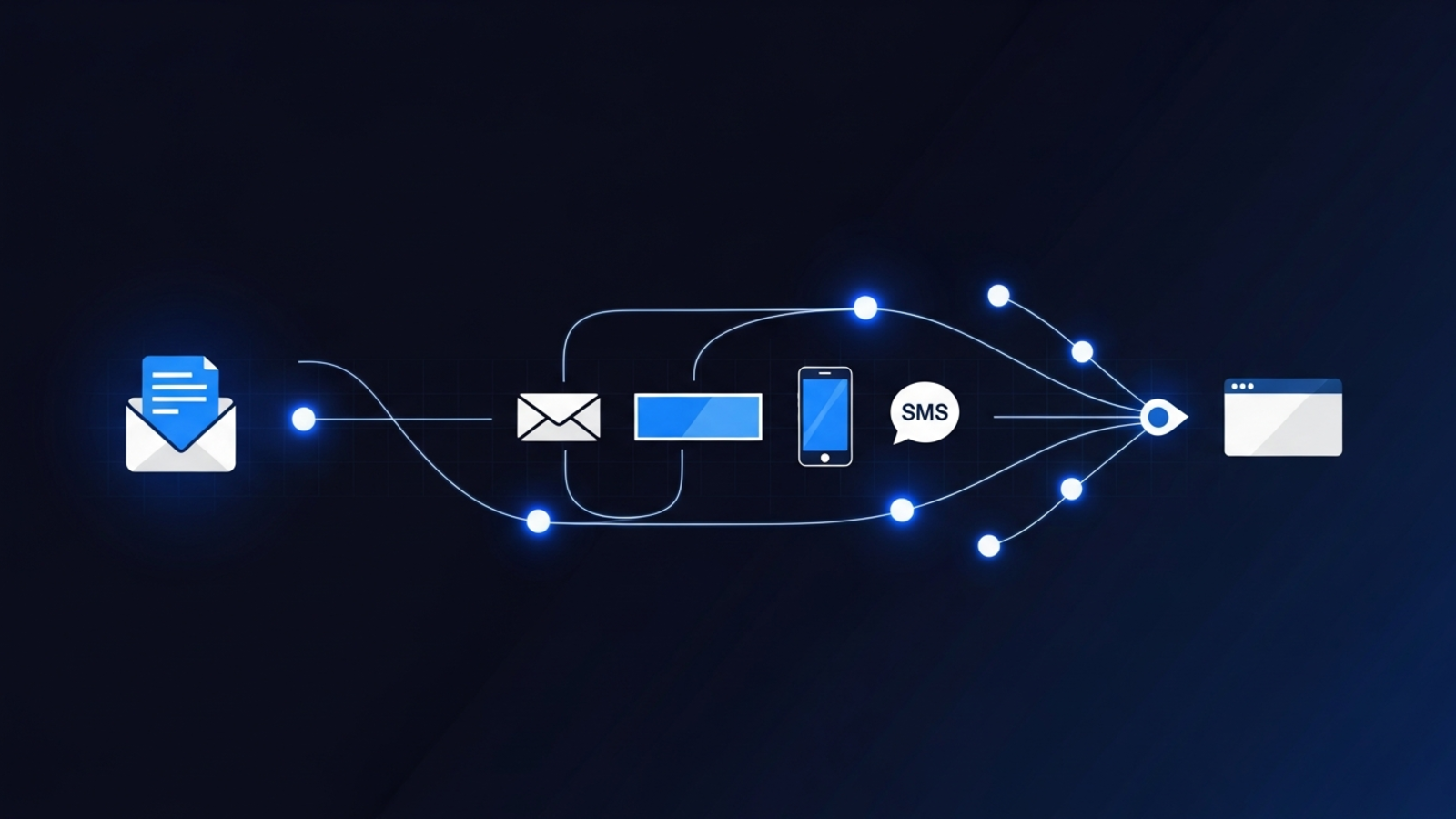

Omnichannel: Where the Conversion Lift Comes From

The biggest mistake is treating newsletter display as one isolated impression. Its true value appears when it becomes part of an omnichannel sequence:

1. The subscriber opens the newsletter
2. The display ad renders with a relevant message
3. The subscriber sees the brand in a trusted environment
4. They click , or they do not
5. Clickers land on a personalized landing page
6. Non-click openers can enter allowed retargeting logic
7. Web, email, SMS, push, or display continue the message
8. The DMP updates the user's state
9. The next ad or email uses the next best message

That is where landing conversion improves , not because the banner itself is magic, but because the landing page is no longer cold. The user has already seen the brand, the message is familiar, the offer is consistent, and the next step feels natural.

Three Worked Examples

Retail: a grocery brand and the weather

A grocery brand sponsors a local newsletter. The system sees: subscriber segment = household decision maker, weather = rain forecast, local delivery zone = active, and time = Thursday evening. The banner says, "Rainy evening? Get groceries delivered tonight." The click goes to a local delivery landing page, and the same user can later receive category retargeting, a coupon reminder, email recipe content, and an SMS delivery-window reminder. The creative is not just dynamic , it is contextual. The weather signal gives the message timing, the newsletter gives trust, and the landing page gives action.

What Will Not Work Inside Email Banners

Email is powerful because of identity and trust. It is weak as a runtime environment, and that matters. Here is what to avoid expecting from an inbox.

Email Image Ads vs AMP vs HTML5

These three formats are often confused, but they are not the same.

A Recommended Architecture

A serious system has four layers, each with a clear job.

That is how email display becomes infrastructure rather than a one-off banner. For the broader buy-side performance picture, see RTB Performance Strategies for First-Party Media Buyers, and for privacy-safe collaboration on identity, see Data Clean Rooms.

Frequently Asked Questions

How do display ads work inside an email newsletter?

Most newsletter ads are rendered through a loaded image, not browser JavaScript. The slot is an <a> link wrapped around an <img> tag; opening the email loads that image from an ad server, which reads privacy-safe signals (publisher, newsletter, placement, hashed email, segment, context) and returns the most relevant banner. A click is tracked and redirects to the advertiser.

Is email newsletter advertising the same as normal web RTB?

No. Web RTB relies on JavaScript , GPT tags, Prebid.js, header bidding, cookies, and client-side auctions. Email blocks most of that, so newsletter advertising is usually image-rendered. It can still be programmatic with demand rules, private deals, priority, and DMP segments , within email's limits.
